View larger

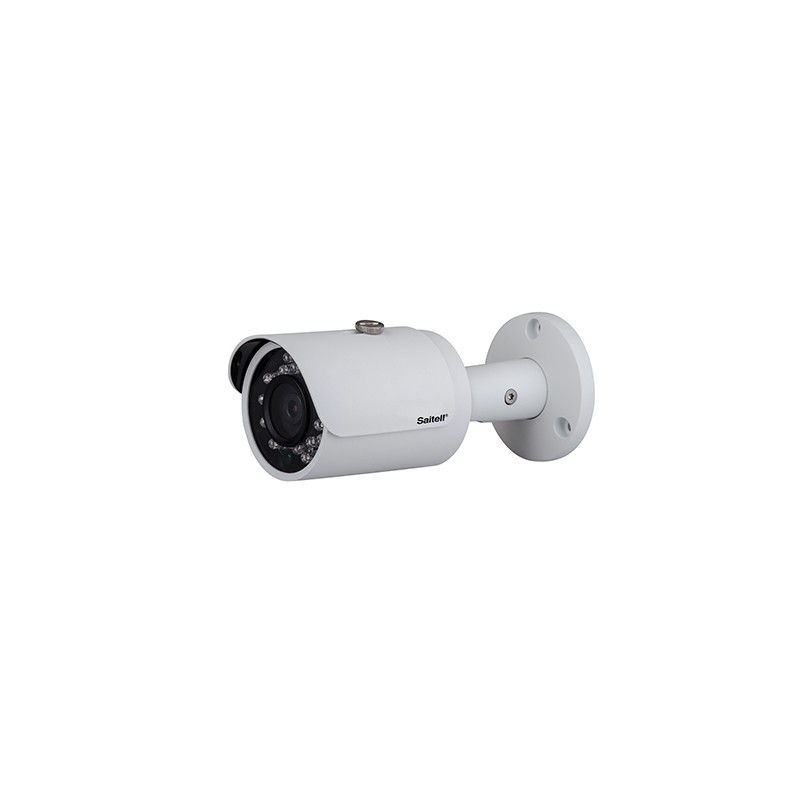

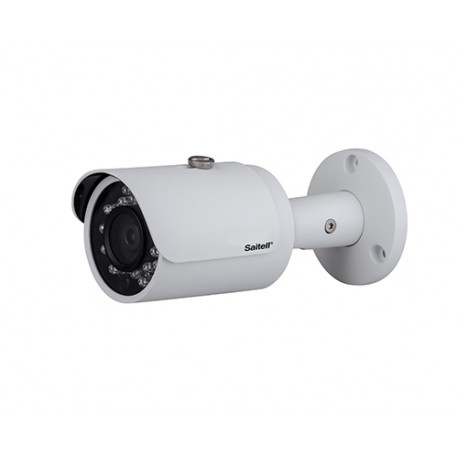

2Mp/3Mp Full HD Network Mini IR Bullet Camera
ST-IPC1220SIR
Nouveau produits
Features
> 1/2.7”2Megapixel(1220SIR) 1/3”3Megapixel(1320SIR) progressive scan CMOS
> H.264&MJPEG dual-stream encoding
> Max 20fps@3M(2048×1536)(1320SIR) & 25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm optional)
> Max. IR LEDs Length 30m
> IP67, PoE
209,720DT tax incl.
tax incl.
Technical Specifications
|
Model |
ST-IPC1220SIR |
ST-IPC1320SIR |
||
|
Camera |
||||
|
Image Sensor |
1/2.7” 2Megapixel progressive scan CMOS |
1/3” 3Megapixel progressive scan CMOS |
||
|
Effective Pixels |
1920(H) ´ 1080(V) |
2048(H) ´ 1536(V) |
||
|
Scanning System |
Progressive |
|||
|
Electronic Shutter Speed |
Auto/Manual, 1s~1/100000s |
|||
|
Min. Illumination |
0. 025Lux/F2.1(Color), 0Lux/F2.1(IR on) |
0. 045Lux/F2.1(Color), 0Lux/F2.1(IR on) |
||
|
S/N Ratio |
More than 50dB |
|||
|
Video Output |
N/A |
|||
|
Camera Features |
||||
|
Max. IR LEDs Length |
30m |
|||
|
Day/Night |
Auto(ICR)/Color/B/W |
|||
|
Backlight Compensation |
BLC / HLC / DWDR |
|||
|
White Balance |
Auto/Manual |
|||
|
Gain Control |
Auto/Manual |
|||
|
Noise Reduction |
3D |
|||
|
Privacy Masking |
Up to 4 areas |
|||
|
Lens |
||||
|
Focal Length |
3.6mm(6mm optional) |
|||
|
Max Aperture |
F2.1(F2.0) |
|||
|
Focus Control |
Manual |
|||
|
Angle of View |
H: 93°(63°) |
H: 81°(55°) |
||
|
Lens Type |
Fixed lens |
|||
|
Mount Type |
Board-in Type |
|||
|
Video |
||||
|
Compression |
H.264/ H.264H/ H.264B/ MJPEG |
|||
|
Resolution |
1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) |
3M(2048×1536)/1080P(1920×1080)/ 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) |
||
|
Frame Rate |
Main Stream |
1080P(1 ~ 25/30fps) |
3M(1~20fps)/1080P(1~25/30fps) |
|
|
Sub Stream |
D1(1 ~ 25/30fps) |
|||
|
Bit Rate |
H.264: 4kbps～8192bps |
|||
|
Corridor Mode |
Support |
|||
|
Audio |
||||
|
Compression |
N/A |
|||
|
Interface |
N/A |
|||
|
Network |
||||
|
Ethernet |
RJ-45 (10/100Base-T) |
|||
|
Wi-Fi |
N/A |
|||
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
|||
|
Compatibility |
ONVIF, CGI |
|||
|
Max. User Access |
20 users |
|||
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|||
|
Auxiliary Interface |
||||
|
Memory Slot |
N/A |
|||
|
RS485 |
N/A |
|||
|
Alarm |
N/A |
|||
|
PIR Sensor Range |
N/A |
|||
|
General |
||||
|
Power Supply |
DC12V, PoE (802.3af) |
|||
|
Power Consumption |
<5.5W(IR on) |
<4.7W(IR on) |
||
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|||
|
Ingress Protection |
IP67 |
|||
|
Vandal Resistance |
N/A |
|||
|
Dimensions |
Φ70mm×165mm |
|||
|
Weight |
0.38Kg(with package 0.44 Kg) |
|||
